| Batch Print PO
      Log
					 Help

 Process Batch

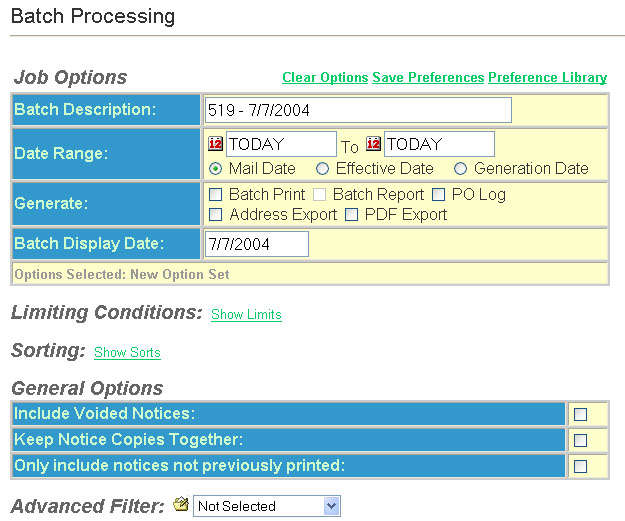

        or PO LogThe Batch Processing page contains the
        following sections:

 The following three options are located at the top of the page:

 1. Clear Options
						-
						Clears all the fields on the page and resets it
        to the defaults.
 2. Save Preferences -
						Saves the current configuration options for use at a later time. Saving
						configuration options allows for
							Batch Print/PO Log
						operations to be run repetitively without specifying the options each time.

 3. Preference Library -
						Allows the user to retrieve a saved preference file or delete an existing one.
						Click the check mark icon
  next
						to the desired batch to load the configurations into the Batch Print screen.
						Click on the delete icon  to
						delete the preference file.
 Job OptionsThe Job Options section contains the following
        fields:

 Batch Description -
        This field contains a description of the batch. By default, this field
        displays a numeric value plus today's date. The default can be overwritten
        with a more descriptive title. ODEN® highly recommends entering a descriptive
        title in this field especially for saved configuration options.
 Date Range - The range of
						notice dates that are to be printed. Valid formats include:


							| Option | Description |
							| TODAY | Today's Date |
							| TODAY + n | Today plus n number of days |
							| TODAY -n | Today minus n number of days |
							| YESTERDAY | Yesterday's date |
							| TOMORROW | Tomorrow's date |
							| mm/dd/yyyy | Date format (mm=month, dd=day, yyyy=4 digit year) |  The calendar icon  allows
						you to view and select dates from a calendar. To make a selection, click on the
						calendar icon and construct the date by choosing a Month Year and a Day. Once
						the date is chosen, the selected date fills in the date field and the calendar
						window closes. Note: Date Range can be based on the Mail date, Effective date, or
						Generation date. The Date range is specified by clicking on the corresponding
						radio button. Generate - This field contains
						the types of information to be generated. To make a section, click on the check
						box next to the corresponding option(s).
 Note : At least one option must be selected in order
        for the batch to successfully generate.

 Batch Print -
						Prints out notices that fall within the specified date range as well as
						applying any limiting
							conditions/filters.

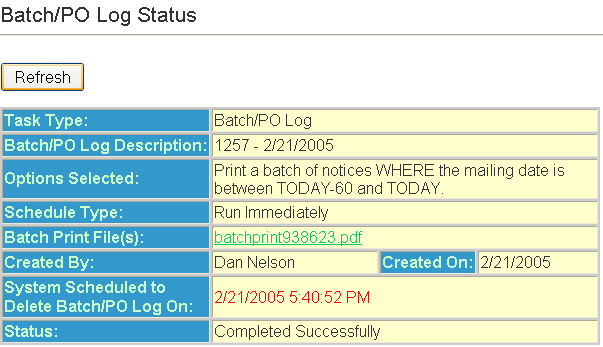

 Note: To reprint a batch, immediately go back to the
        batch/po log status page and click on the file name in the PO Log File
        Field (for example, polog.pdf). This will open the report in Adobe Acrobat®
        and can be reprinted from there by clicking on the printer icon in the
        toolbar.

 Batch Report -
						Generates a report of all notices that fall within a batch. This does not print
						out the notices but instead creates a list of the notices included in the batch
						print criteria. This option is available only if batch print is selected.

 PO Log -
						Generates a USPS compliant post office log of all the notices that meet the
						   specified date range and limiting conditions. It is designed
						to accompany the notices as a    mailing record. It displays
						notices in the same order as the notices were printed.

 Address Export -
						Generates a named insured's
							address export for all notices that meet the
						   specified date range and limiting conditions. This is useful
						for printing address labels.

 Portable
								Document Format(PDF) Export -
						Generates a zip file of all notices that apply to    the
						specified date range and limiting conditions. The zip file contains an
						individual PDF for    each notice generated. Individual PDF's
						can then be downloaded and printed. A log is    included that
						indicates which notice corresponds with which PDF.
 Print Option -
						This field contains the print destination. To make a selection, click on the
						radio button next to the applicable option.

 Print to Local -
						The generated batch is delivered to the browser in a Portable Document
						   Format(PDF).

 Print to Server -
						The generated batch is printed on the server's default printer. This option is
						available and visible for
						intranet customers
						only. For additional information see the
							Print to Server Help page.

 Batch Display Date -
						The date that prints on the Post Office Log.

    Options Selected
        -
						Displays which options are selected in a easy to read format. This is
						   useful for interpreting the exact actions the Batch job will
						perform.
 Limiting ConditionsLimiting Conditions are user specified criteria
        that "filter out" notices. They generally allow an "all"
        or "all except" choice format. If a particular limiting condition
        is not visible then that condition has no effect on the filter. Once a
        limiting condition is selected and is visible then it is imposed. For
        example, if the "Applicable State" limiting condition is not
        visible then all states are selected. Once the "Applicable State"
        limiting condition is selected then no states are selected until one or
        more states are selected for the condition. The following is a list of
        available limiting conditions:


							| Condition | Description |
							| Applicable State | One may select "Only" or "Only Except" and one or
								more states. Control-click to select multiple state. Note: "Applicable State" is the state
            for which the laws were applied to the notice. This may or may not
            be the same as the mailing state that appears in the named insured's
            address block.
 |
							| Branch | One may select "Only" or "Only Except" and one or
								more branches. Control-click to select multiple branches. |
							| Carrier | One may select "Only" or "Only Except" and one or
								more carriers. Control-click to select multiple carriers. |
							| Copy Types | The Copy Types limiting condition has a column of
								checkboxes for each requested generation type (Batch
									Print, PO Log,
								Address Export and
									PDF Export). Note: If no generation option is selected no checkboxes
            are displayed. For each selected generation process one must select
            the desired copy type(s). For example, one may include the named insured
            on the PO Log but not include named insured in the Address Export.
 |
							| Insurance Type | One may select "Personal" or "Commercial".
								Clear/Hide this limiting condition to select both "Personal" and "Commercial". |
							| Mailing
									Type | The Mailing Type limiting condition has a column
								of checkboxes for each requested generation type (Batch Print, PO Log, Address
								Export and PDF Export). Note: If no generation option is selected no checkboxes
            are displayed. For each selected generation process one must select
            the desired mailing type(s). For example, one may include the registered
            mail on the PO Log but not include registered mail in the Address
            Export.
 |
							| Mailing State | One may select "Only" or "Only Except" and one or
								more states. Control-click to select multiple states. Note: "Mailing State" is the state that
            appears in the recipient's address block and not the state for which
            the laws were applied to the notice.
 |
							| Notice Type | One may select "Only" or "Only Except" and one or
								more notice types (cancellation,
									conditional renewal,
									freeform, nonrenewal,
								policy change,
								refusal to write,
								reinstatement,
								or renewal premium).
								Control-click to select multiple notice types. |
							| Operator Name | One may select "Only" or "Only Except" and one or
								more operators. Control-click to select multiple operators. |
							| Policy
									Types | One may select "Only" or "Only Except" and one or
								more policy types. Control-click to select multiple policy types. Note: The policy type list is dependent on the
            Insurance Type limiting condition. For example, only commercial policy
            types show in the Policy Types limiting condition when commercial
            only is specified in the Insurance Type limiting condition.
 |
							| Producer
								Number | One may select "Only" or "Only Except" and one or
								more producer numbers. Type in a producer number or select a producer with the
								binocular  search
								and click the 'Add' button. To remove a producer number from the list click the
								Remove button that is to the right of the producer number you wish to remove. |
							| Underwriter
								Name | One may select "Only" or "Only Except" and one or
								more underwriters. Control-click to select multiple underwriters. |  SortingThis option will allow for the printed notices or po log to be sorted. These options
						determine the order in which the notices are arranged in the Portable Document
						Format(PDF).
 General OptionsThe General Options section contains the following fields:
 Include Voided Notices -
						Includes notices that are marked as voided in the batch. Voided notices are
						simply notices that were generated but because of some problem or error were
						not printed or mailed and therefore are not valid notices. By default this is
						not checked.
					 Keep Notice Copies Together
						-
						Preserves the notice grouping by policy number. This applies when sorting the
						notices. If this is checked then all copies for one policy number are treated
						as one notice and are sorted accordingly. If it is not checked then every copy
						is treated as an independent notice document and then sorted. Checking this
						option is useful for keeping all notice copies that pertain to a particular
						policy number together. Only include notices not previously
						 printed
						-
						Only prints notices that have not ever been printed. These are notices where
						printing was suspended at generation time.
					 Batch Print
      Options Set your company defaults
      for batch printing.  This will mainly be used when utilizing a
      folding and/or mailing machine.  This only appears if the Batch Print
      checkbox is selected.
 Batch Print for Folding -
      Identifies the batch as one to be sent to a folding
      machine. Max Page Count - Identifies the maximum copies of any individual
notice. Flip Images 180 Degrees - Allow the image to be turned in order to automatically stuff envelopes. Include Cover Sheet - Will print a cover sheet between each specified
      request.
 Include Mailing Sheet - Will include a mailing sheet before each notice copy. Cover Sheet Title - Title that appears at the top of the cover sheet.  Option
      only appears if "Include Cover Sheet" option is selected. Cover Sheet Text - This is the text that appears on the cover sheet.  This
      option only appears if the "include Cover Sheet" option is
      selected. Home
      Office/Branch Office Option Set your default for
      your Home Office/Branch Office copies.
 Generated Copies - Prints all generated
      copies for the Home Office/Branch Office.
						 Required Copies - Prints only those
      copies required by law for the Home Office/Branch
Office.
						 Home Office - Prints only those copies
      marked Home Office.
						 Branch Office - Prints only those copies
      marked Branch Office.
						 PO Log
      Options Set your defaults for the Post
      Office Log.  Appears only if the PO Log checkbox is
      selected.
 Carrier - Prints this carrier
      name at the top of the Post Office Log.
									 Branch Address - Prints this address
      at the top of the Post Office Log, below the Carrier name (if
      selected).
									 Include Misc Line - This will
      include the miscellaneous line from the policy of each of the
      entries.
										 PDF
      Export Options Set options pertaining to the PDF
      Export functionality.  Appears only if the PDF Export checkbox is
      selected.
 File Name
																	Prefix - inserts this
      text in front of each filename in the zip file.  A unique
      system identifier number is still used in the
      filename.  All Notice Copies
																	in Single PDF - Puts all the copies into
      a single PDF document.  If this is not checked all copies will
      be in their own PDF
document.

												Advanced FilterSetup The Advanced Filter is set up in the Data
							Setup section of Utilities. Select statements can be used to filter
        out information and therefore get more precise results. More detail on
        this feature is given in the Filter Setup
        Help section.


        FAQ's 1) How to set up the chunking for Batch Print ?
 Ans : a) Go to Registry Start->Run->regedit,
 b) Navigate to the path HKLM\SOFTWARE\WowSys6432Node\OdenPT
 c) Set the desired value for BatchChunkSize.
 d) Restart the NoticeGen.
 Notes :
 This chunking option will be available with October 2014 release and above.
 Fair value for Batchchunksize is between 1000 and 2000 for good performance.
 Chunking will be disabled if it is set to ZERO
 Registry path might be different for different servers.
 NoticeGen needs to be restarted after each change in registry value.

 Batch or PO
        Log Status


 This screen shows the status of any Batch/PO
        Log jobs that have been scheduled, started, or completed. When a job is
        complete, a link appears allowing access to the batch print/PO Log. From
        this link one can view, print, or download the resulting batch. Click
        on the Refresh button to refresh the job queue. Also, there is a link
        to a log that tells whether or not the job completed successfully. If
        the job did not complete successfully the log specifies what errors occurred.





 Link to
        Batch Print PO Log Help page


 |
